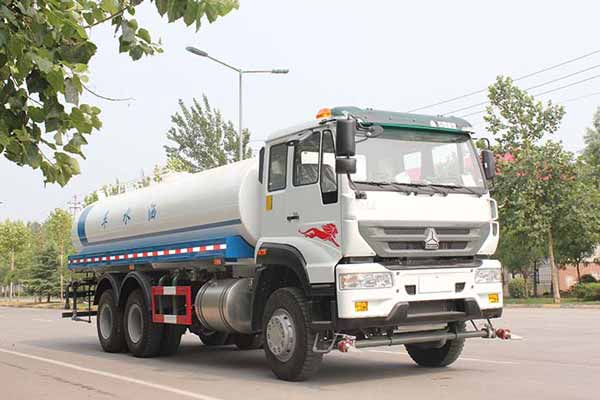

Golden Prince Sprinkling Truck

发布时间: 2014-11-03 16:52

We can provide all SINOTRUK brand chassis with water tank, such as HOWO, Golden Prince Huanghe etc.

Item	Sprinkling truck
Truck model	ZZ1257N4347C	ZZ1257N4347C	ZZ1257N4647C
Driven type	6x4	6x4	6x4
Engine	WD615.87, Euro II, 290hp, 213KW, 6 cylinders inline, diesel type, Max. torque speed 1100-1600rpm
Transmission	HW15710, 10 forwards and 2 reverse, manual gearbox, Optional: HW13710, HW19710
Cabin	HW76, Extended cab, single berth, up/down and front/back adjustable steering wheel,VDO instrument and control module, safety belt with double locking mechanism, exterior sun visor.
Front axle	HF7, drum brake, 7000kgs, disc brake is optional.
Drive axle	HC16, 16000kgs X 2, double hub reduction, standard ratio is 4.42, optional 4.8, 5.73.
Steering	ZF8098, hydraulic steering with power assistance
Tyre	12.00R20, radial tyre include one spare tyre.
Fuel tank	300L square shaped, Aluminum fuel tank
Displacement	9.726L
Color	optional
External Dimension	856025003800mm
Water tank capacity	15m³	20m³	25m³
Water pump	80QSB-60/90, with front/rear sprinkling, water gun (range: ≥26m) No pump is optional for only transporting water.
Truck frame	Strengthen frame or lighten frame optional
